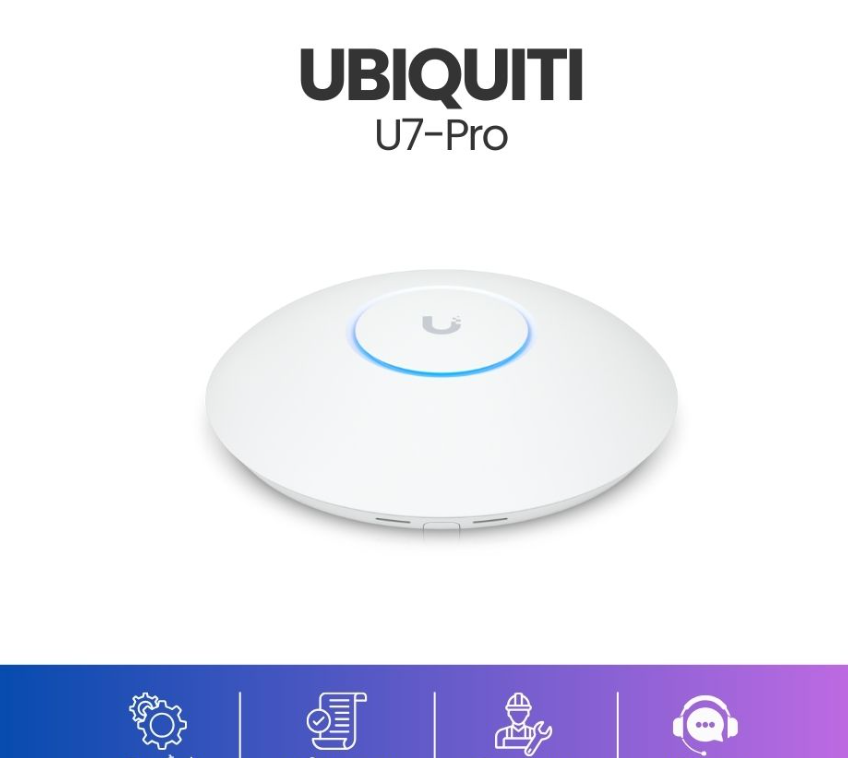

UBIQUITI Access Point U7-PRO Ceiling-mounted WiFi 7 AP 6 GHz support

WiFi 7 AP yang dipasang di langit-langit dengan 6 aliran spasial dan dukungan 6 GHz untuk WiFi bebas gangguan tergantung lingkungan dan untuk berskala besar, menjangkau 140m2, untuk 300 device.

MECHANICAL
Dimensions : Ø206 x 46 mm (Ø8.1 x 1.8″)
Weight : 680 g (1.5 lb)
Enclosure material : Polycarbonate, metal
Mount material : Stainless steel (SUS304), galvanized steel (SGCC)

HARDWARE
Networking interface : (1) 1/2.5 GbE RJ45 port
Management interface : Ethernet
Power method : PoE+
Power supply : UniFi PoE switch
Supported voltage range : 44?57V DC
Max. power consumption : 21W

MAX. TX POWER
2.4 GHz – 22 dBm
5 GHz – 26 dBm
6 GHz – 23 dBm

? MIMO
2.4 GHz – 2 x 2
5 GHz – 2 x 2
6 GHz – 2 x 2

THROUGHTPUT RATE
2.4 GHz – 688 Mbps
5 GHz – 2882 Mbps
6 GHz – 5765 Mbps

ANTENNA GAIN
2.4 GHz – 4 dBi
5 GHz – 6 dBi
6 GHz – 5.8 dBi

LEDs : White/blue
Button : Factory reset
Mounting : Wall/ceiling (Included)
Ambient operating temperature : -30 to 60? C (-22 to 140? F)
Ambient operating humidity : 5 to 95% noncondensing
Certifications : CE, FCC, IC

SOFTWARE
WiFi standards : 802.11a/b/g/n/ac/ax/be
Wireless security : WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID : 8 per radio
VLAN : 802.1Q
Advanced QoS : Per-user rate limiting
Guest traffic isolation : Supported
Concurrent clients : 300+

Supported Data Rates
– 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– 802.11b : 1, 2, 5.5, 11 Mbps
– 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– 802.11n : 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
– 802.11ac (WiFi 5) : 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
– 802.11ax (WiFi 6/6E) : 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
– 802.11be (WiFi 7) : 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements
UniFi Network : Version 8.0.26 and later
UniFi OS : Version?3.2?and?later

Garansi 1 Tahun
