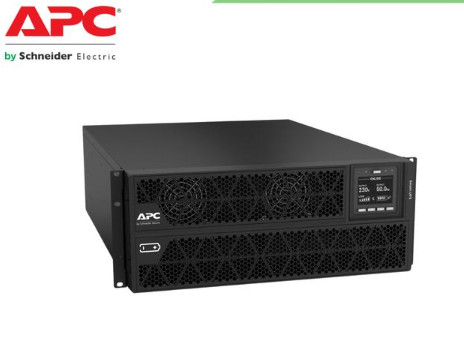

UPS APC SRTG5KXLI Smart-UPS On-Line 5000VA 5000W Rack/Tower 230V

SRTG5KXLI

APC Smart-UPS On-Line, 5kVA/5kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit

Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 5000 W
Rated power in VA 5000 VA

output connection type
2 IEC 60320 C13
1 IEC 60320 C19

output connector type Hard wire 3-wire (H N + E) 1
Battery type Lead-acid battery

provided equipment
Smart UPS signalling RS-232 cable
User manual
USB cable

Input
network frequency 40…70 Hz auto-sensing
number of input connectors 1 hard wire 3-wire (1P + N + E)
input voltage limits 160…285 V
Maximum input current 30 A
Switching current capacity 40 A

Output
Maximum configurable power in W 5000 W
Harmonic distortion Less than 2 %
output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Bypass type Internal bypass (automatic and manual)
full load runtime 00:03:30 5000 W
half load runtime 00:10:20 2500 W
Maximum configurable power in VA 5000 VA

Communications & Management
Preinstalled device:
Network management card 3 with environmental monitoring
alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off: Yes

Warranty
3 years repair or replace (excluding battery) and 2 years for battery

VN210823
